Kinugawa Turbo CHRA Cartridge TD05H-16G for Nissan TD42 Patrol Y60 Y61 GQ GU Oil-Cooled—
$459.00
The Story
Application
- Fits Kinugawa Turbo for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine.
- Fits Kinugawa Turbo for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16G
Wheels Spec

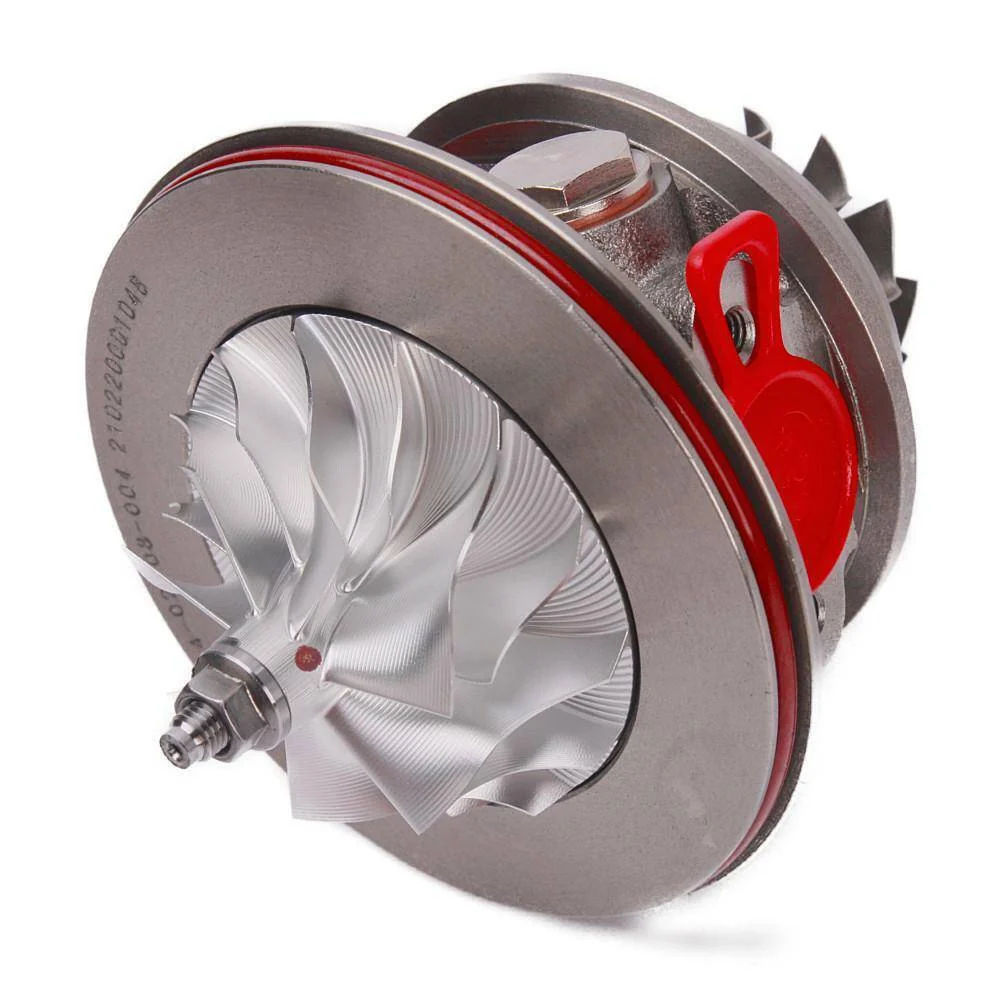

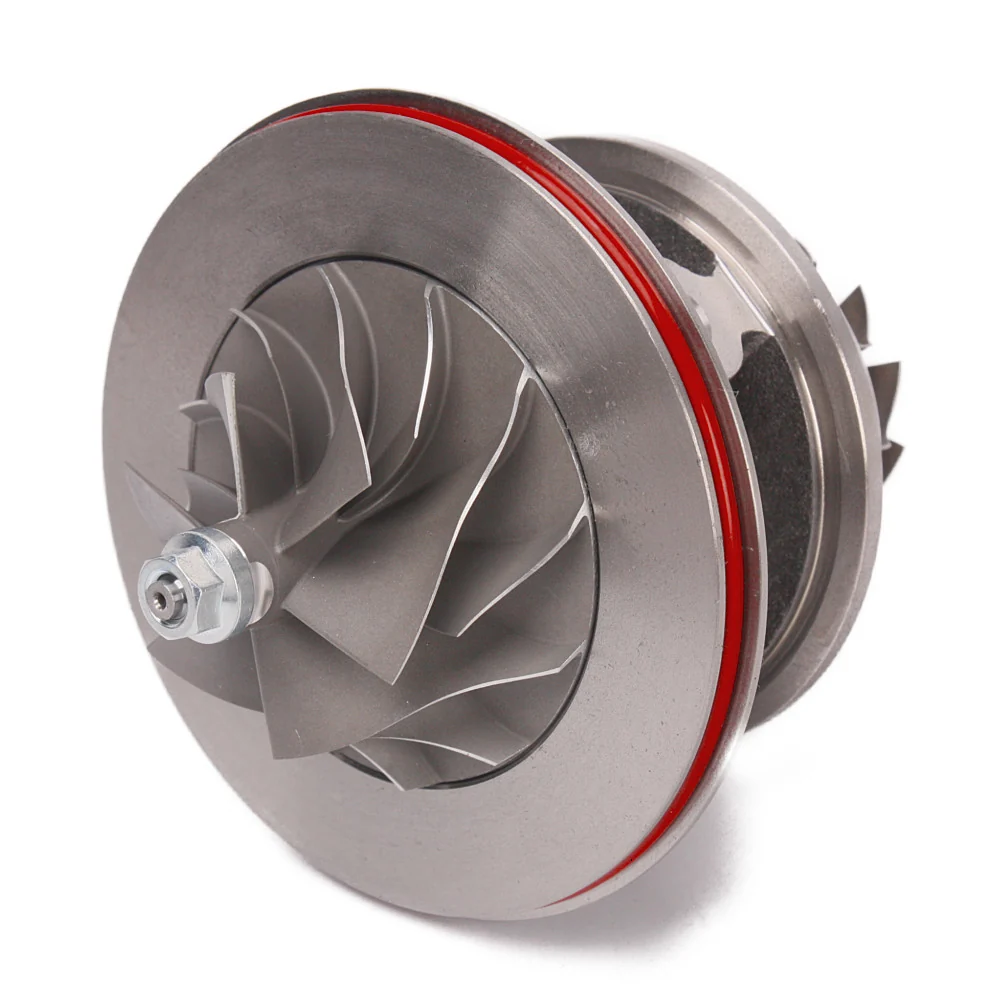

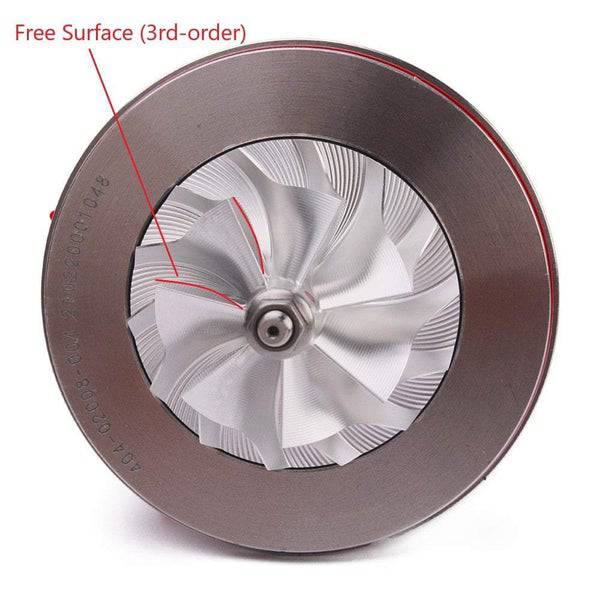

- Compressor wheel: 48.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- Oil cooled
The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#414-01101-004 + #416-01003-004*2)
- 1 x Oil return gasket (#413-02006-001)
- 1 x Oil return gasket (#413-02006-001)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
