-65%Kinugawa Turbo CT26 60-1 8cm for Toyota DYNA Land Cruiser 13BT 3.4L 14BT 3.7L 15BT 4.1L—
$989.00
$346.15The Story
Description
- The Garrett 60-1 wheel will offer an extra 50% airflow than the stock CT26 compressor wheel. This upgraded turbo will get an extra 50% torque and hp than the stock CT26 turbocharger.
- The Garrett 60-1 wheel will offer an extra 50% airflow than the stock CT26 compressor wheel. This upgraded turbo will get an extra 50% torque and hp than the stock CT26 turbocharger.
Application
- 1984~1994 13BT 3.4L Land Cruiser BJ71 BJ74
- Replace stock 17201-58020 17201-58040 turbocharger.
- Replace stock 17201-58020 17201-58040 turbocharger.
- 14BT 3.7L diesel DYNA / Toyoace.
- 15BT 4.1L diesel DYNA / Coaster.
- 15B-FT 4.1L diesel DYNA / Coaster / Mega Cruiser.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
Wheels Spec
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
Wheels Spec
- Compressor wheel: 60/76 mm (Garrett 60-1 wheel)

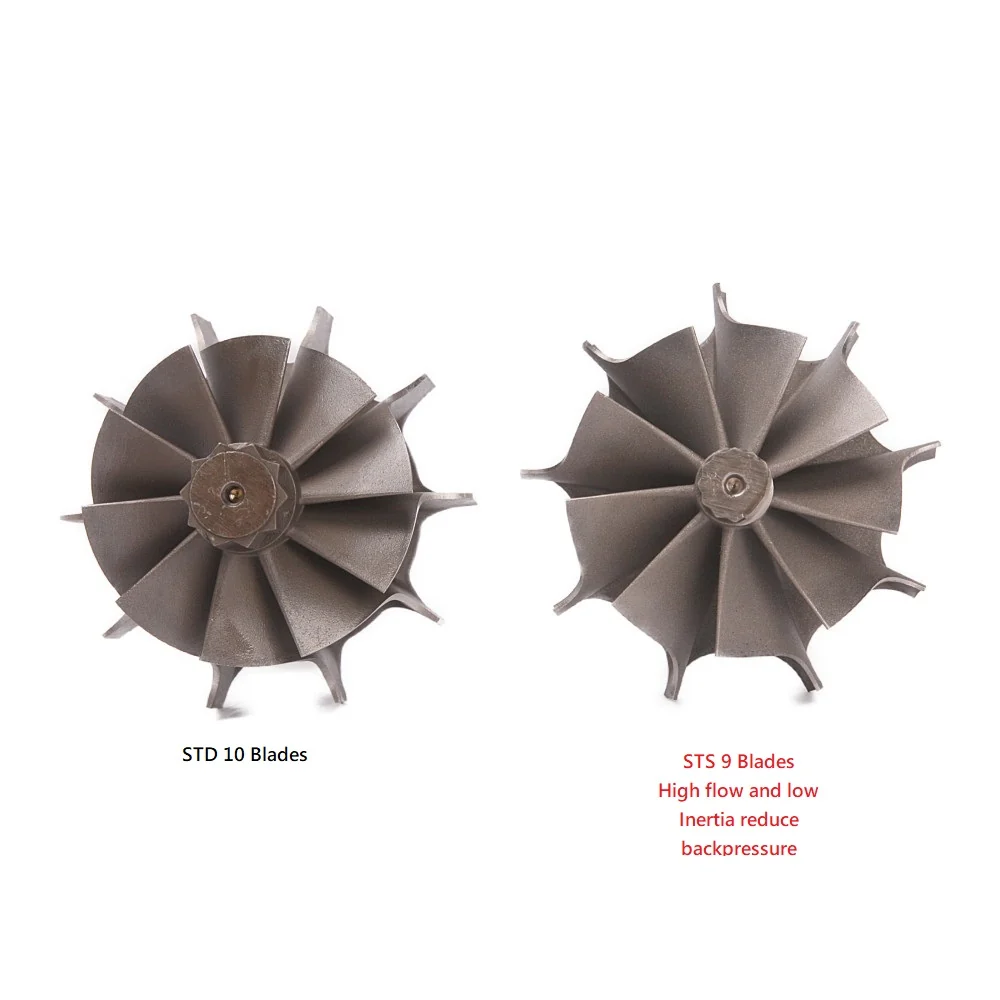

- Turbine wheel: 51.9 / 67.9 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Bolt-on stock type
Turbine Housing
- Nozzle area: 8cm
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on stock type
Bearing Type
- Bolt-on stock type
Turbine Housing
- Nozzle area: 8cm
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on stock type
Bearing Type
- Journal Bearing
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

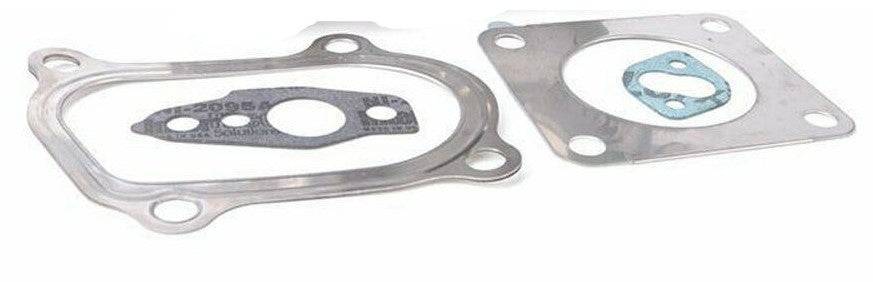

The Set Includes
- 1 x Oil feed/return gasket.
- 1 x Water feed/return gasket.
- 1 x Turbine Inlet and outlet gasket
- 1 x Water feed/return gasket.
- 1 x Turbine Inlet and outlet gasket
- 1 x Turbocharger
- 1 x Balance Report with an anti-counterfeit tag
Situation code
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
